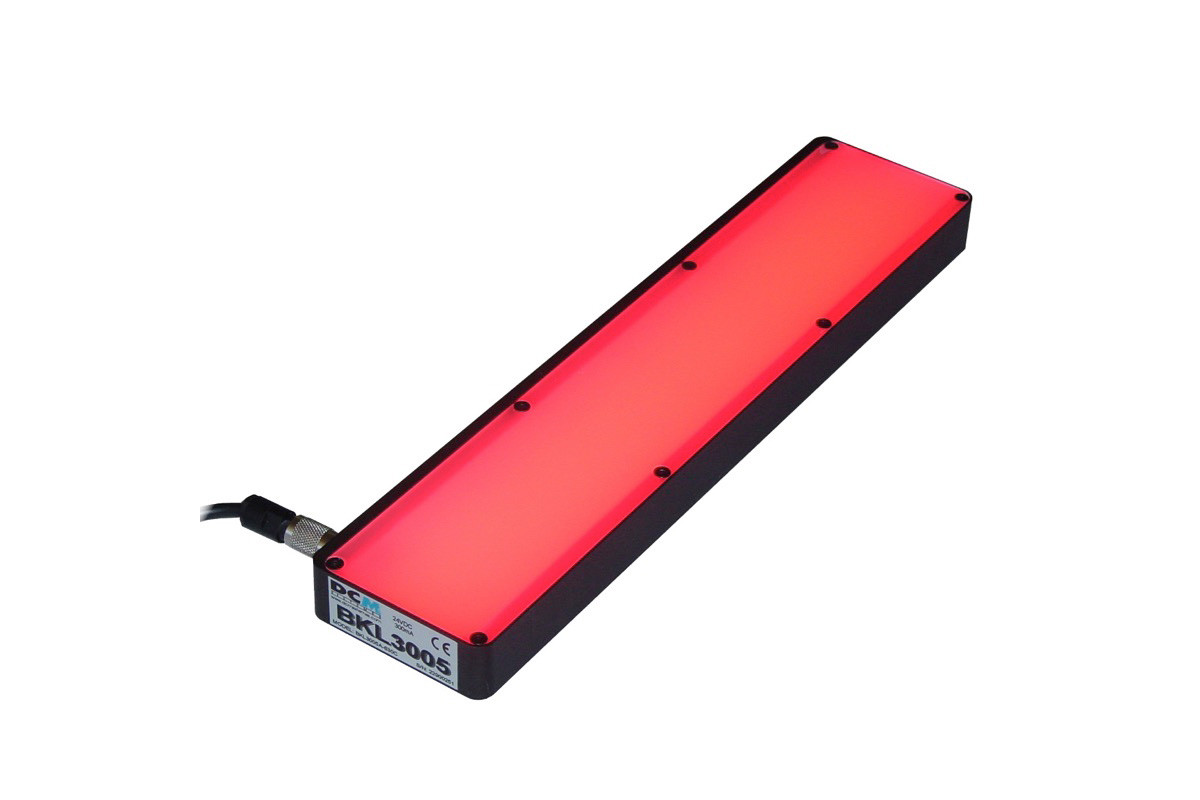

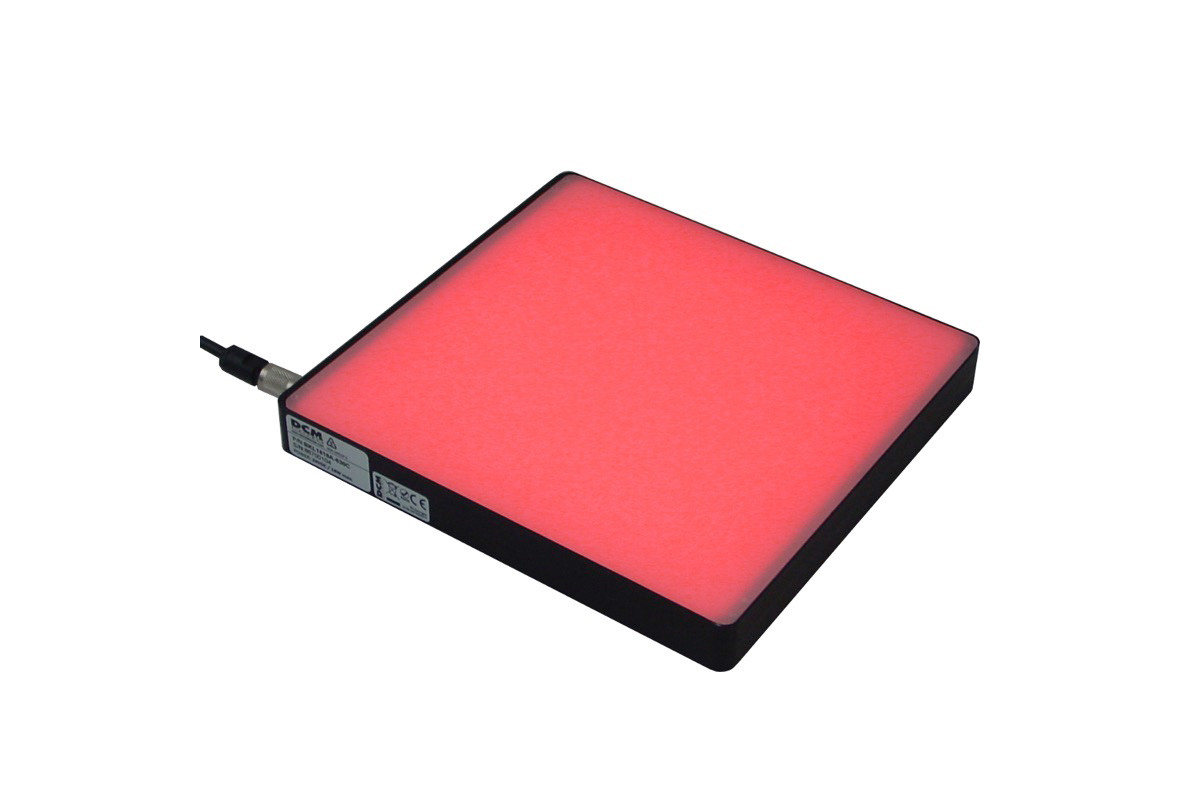

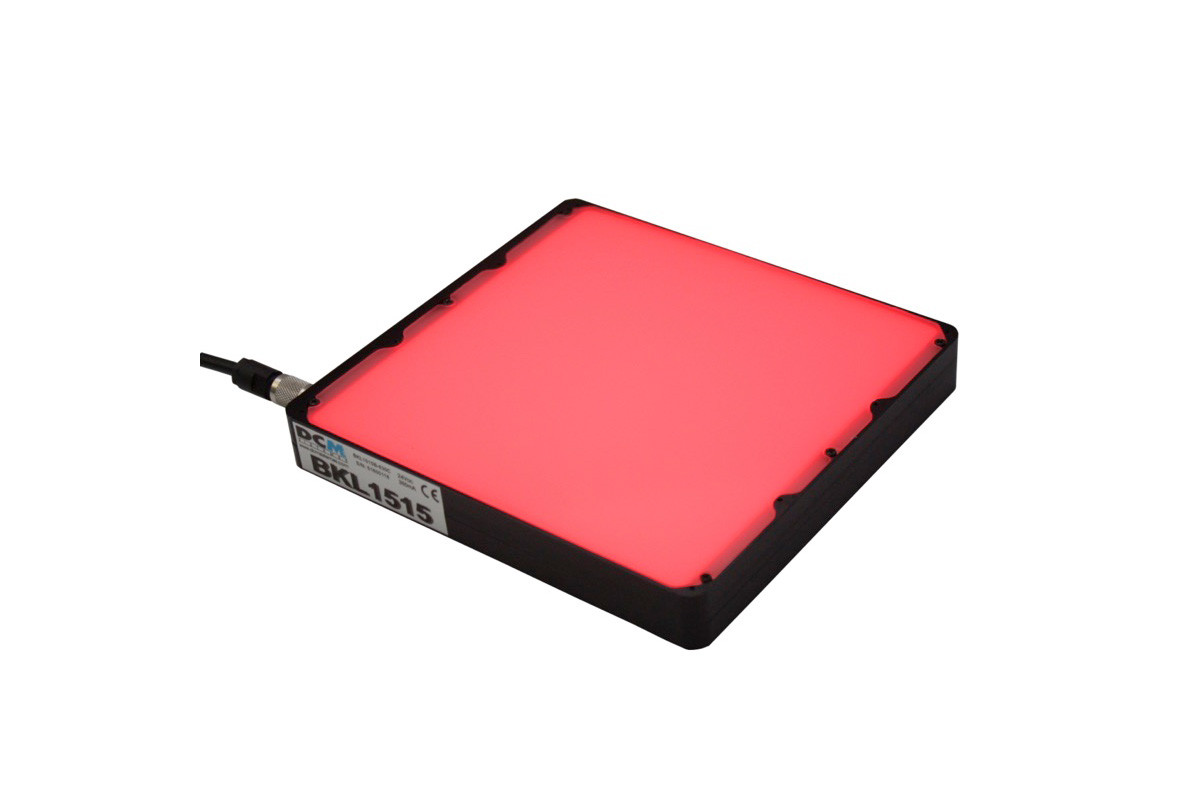

BKL

Backlights

DCM

Posterior diffused lighting system design to measure precisely or emphasize light-dark differences by contrast, what is useful to have good images of an object shape.

Are used to inspect profiles and edges and bright field creation.

Show Models

▼

Variant code	Active Surface	Dimensions
BKL0303A	30 x 30 mm	40 x 34 x 22 mm
BKL0504B	40 x 50 mm	52 x 55 x 22 mm
BKL0505A	50 x 50 mm	62 x 55 x 22 mm
BKL0705B	50 x 70 mm	75 x 75 x 22 mm
BKL0707B	70 x 70 mm	86 x 77 x 22 mm
BKL1007B	70 x 100 mm	89 x 107 x 22 mm
BKL1010A	100 x 100 mm	116 x 106 x 22 mm
BKL1510A	100 x 150 mm	116 x 154 x 22 mm
BKL1515B	150 x 150 mm	169 x 157 x 22 mm
BKL1818A	180 x 180 mm	194 x 184 x 22 mm
