Dual Series Line Scan

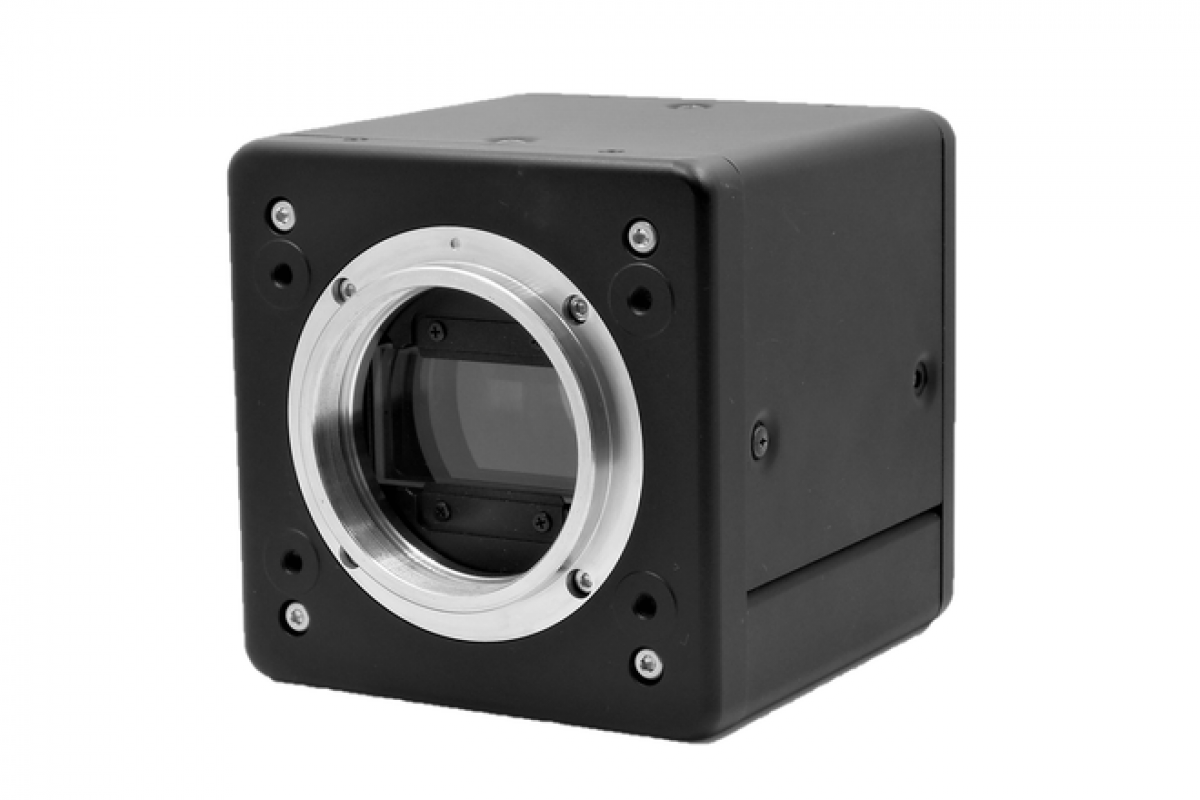

Dual - 2 Sensor Prism Spectroscopic Camera - Line Scan

BLUE VISION
  • Design: 2 sensor spectral prism
  • Size: Small size, light in weight, compact body design
  • Sensor: InGaAs, CMOS
  • Scan: Line Scan
Dual Series Line Scan

Dual sensor system

This solution gives access to be visualized “invisible defect” by 2 different wavelength of image output such as visible (colour or B/W) and invisible (NIR) images. We have designed newly developed prism optics and use 1/2.9” 1.58MP Global shutter Sony CMOS sensors with 43fps,
C-mount and Camera link interface are featured.

Our technology allows you to capture spectroscopic imaging of your fast moving and rolling object to the smallest detail at the same moment in the same spot, without compromising with its speed.

As you can determine your desired wavelengths for creating your data, our 2 sensor camera will be helpful in solving your application such as semiconductor wafer inspection, food inspection, pill inspection, sorting of recycling materials and so on.

The incident light is separated into multiple wavelengths by designing dichroic mirror and trimming filter, going through the sensor and outputting as image data. It is able to separate the light into specific wavelengths, not only in the range of visible bandwidth but also in the range of near infrared (NIR) or short wave infrared (SWIR).

Besides, we have standard video camera line such as HDTV camera, HDTV auto focus camera and high sensitivity camera for general purpose applications.

Variant code Bandwidth Description Dimensions Effective image output (pixels) Interface Lens mount Line frequency (kHz) Optics Sensor Weight Spec
BVC3340 400nm～700nm 4K High speed CMOS 95mm × 95mm × 95mm 4096 CameraLink M52 mount 35.00 2 sensor spectral prism B/W high speed CMOS ×2, 7μm square 793g
BVC3220 900nm～1290nm & 1290nm～1600nm 1K InGaAs 95mm × 95mm × 95mm 1024 CameraLink, Gigabit Ethernet (under development) M52 mount 0.1kHz～40kHz at 60MHz, 0.1kHz～20kHz at 30MHz 2 sensor spectral prism InGaAs ×2, 12.5μm square 810g
BV-C3210 900nm～1290nm & 1290nm～1900nm 0.5K InGaAs 95mm × 95mm × 95mm 512 CameraLink M52 mount 8.13 2 sensor spectral prism InGaAs ×2, 25μm square 820g
BVC3320 400nm～700nm 2K High speed CMOS 95mm × 95mm × 95mm 2048 CameraLink M52 mount 65.00 2 sensor spectral prism B/W high speed CMOS ×2, 14μm square 793g
BV-C3300 400nm～700nm 4K CMOS 95mm × 95mm × 95mm 4096 CameraLink M52 mount 18.03 2 sensor spectral prism B/W CMOS ×2, 7μm square 820g
BVC3221 900nm～1290nm & 1290nm～1600nm 0.5K InGaAs 95mm × 95mm × 95mm 512 CameraLink, Gigabit Ethernet (under development) M52 mount 0.1kHz～40kHz at 60MHz, 0.1kHz～20kHz at 30MHz 2 sensor spectral prism InGaAs ×2, 25μm square 810g
BV-C3350 400nm～700nm 4K CMOS 95mm × 95mm × 95mm 4096 CameraLink M52 18.03 2 sensor spectral prism B/W CMOS ×2, 7μm square 820g
BV-C3500 900nm～1680nm & 400nm～900nm 4K CMOS 95mm × 95mm × 95mm 512 pixels/InGaAs, 4096 pixels/CMOS CameraLink M52 8.1kHz/InGaAs, 18.03kHz/CMOS 2 sensor spectral prism InGaAs 25μm square & B/W CMOS 7μm square 820g
BV-C3510 1100nm～1900nm & 400nm～900nm 4K CMOS 95mm × 95mm × 95mm 512 pixels/InGaAs, 4096 pixels/CMOS CameraLink M52 8.1kHz/InGaAs, 18.03kHz/CMOS 2 sensor spectral prism InGaAs 25μm square & B/W CMOS 7μm square 820g
