SC3000 Series

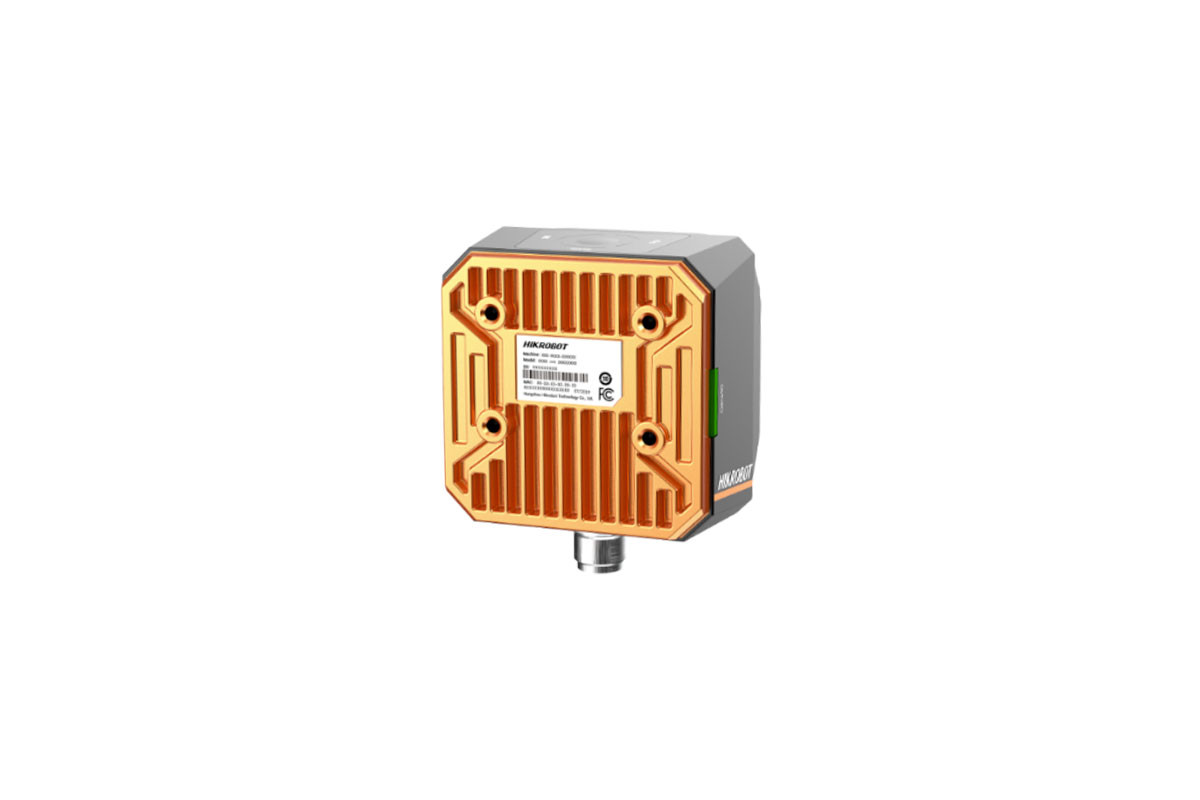

SC3000 Vision Sensor

Smaller size, easy to install in any position of the production line, Abundant functions are used for error-proof detection in the production process, More convenient human-computer interaction interface, Integrated with image acquisition, processing and communication functions, SC3000 vision sensor brings up a more cost-efficient and comprehensive functional choice for visual inspection.

HIK ROBOT
  • Interface: It can also quickly filter suitable tools in the visualized display interface, and help to deploy real-time applications on site.
  • Light: White light by default. Red/blue/near-infrared is optional.
  • Data Interface -: 17-pin M12 connector provides power, Ethernet, digital I/O, and serial port
  • Algorithm: Inspection solutions such as presence/absence detection, front/rear detection, position locating, size measurement, etc. are often used for error-proof inspection.
SC3000 Series

Delicate System Architecture

With image acquisition components such as light source, lens, and lens cover embedded internally, SC3000 vision sensor is compatible with industrial protocols such as EtherNet/IP, ProfiNet, Modbus and etc.. The cross section of SC3000 is approximately the size of a business card, making it easy to be installed in a small production line environment.

Variant code Focal Length mm Max. Frame Rate (fps) Mono-Color Resolution (px) Spec User Manual
MV-SC3004M-06M-WBN 6 mm 100 fps Mono 704 × 540
MV-SC3004C-06M-WBN 6 mm 100 fps Color 704 × 540
MV-SC3004M-12M-WBN 12.4 mm 100 fps Mono 704 × 540
MV-SC3004C-12M-WBN 12.4 mm 100 fps Color 704 × 540
MV-SC3004M-15M-WBN 14.8 mm 100 fps Mono 704 × 540
MV-SC3004C-15M-WBN 14.8 mm 100 fps Color 704 × 540
MV-SC3016M-06M-WBN 6 mm 60 fps Mono 1408 × 1024
MV-SC3016C-06M-WBN 6 mm 60 fps Mono 1408 × 1024
MV-SC3016M-12M-WBN 12.4 mm 60 fps Mono 1408 × 1024
MV-SC3016C-12M-WBN 12.4 mm 60 fps Color 1408 × 1024
MV-SC3016M-15M-WBN 14.8 mm 60 fps Mono 1408 × 1024
MV-SC3016C-15M-WBN 14.8 mm 60 fps Color 1408 × 1024
