Single Series Area Scan

Single - 1 Sensor Camera - Area Scan

BLUE VISION

Design: 1 sensor
Size: Small size, compact body design, light in weight
Sensor: InGaAs, CMOS
Scan: Area Scan

Single sensor SWIR

There is certain demand to be visualized “Invisible defect” detection for contaminants or defects, we have developed single SWIR sensor cameras to solve it. For Line scan, we have 500 and 1K pixels resolutions of SWIR cameras available, VGA resolution for Area scan

Show Models

▼

Variant code	Bandwidth	Description	Dimensions	Effective image output (pixels)	Frame rate	Interface	Lens mount	Sensor	Weight
BV-C2900	950nm～1700nm	VGA InGaAs	58mm × 58mm × 120mm	640 (H) × 512 (V)	62fps (max)	CameraLink, Gigabit Ethernet	C Mount	InGaAs, 20μm square	675g/CL, 665g/GigE
BV-C2901	950nm～1700nm	VGA InGaAs	95mm × 95mm × 130mm	640 (H) × 512 (V)	62fps (max)	CameraLink, Gigabit Ethernet	C mount	InGaAs, 20μm square	1100g/CL, 1090g/GigE
BV-C2903	950nm～1700nm	QVGA InGaAs	58mm × 58mm × 95mm	320 (H) × 256 (V)	226fps (max)	CameraLink, Gigabit Ethernet	C Mount	InGaAs, 20μm square	570g/CL, 560g/GigE

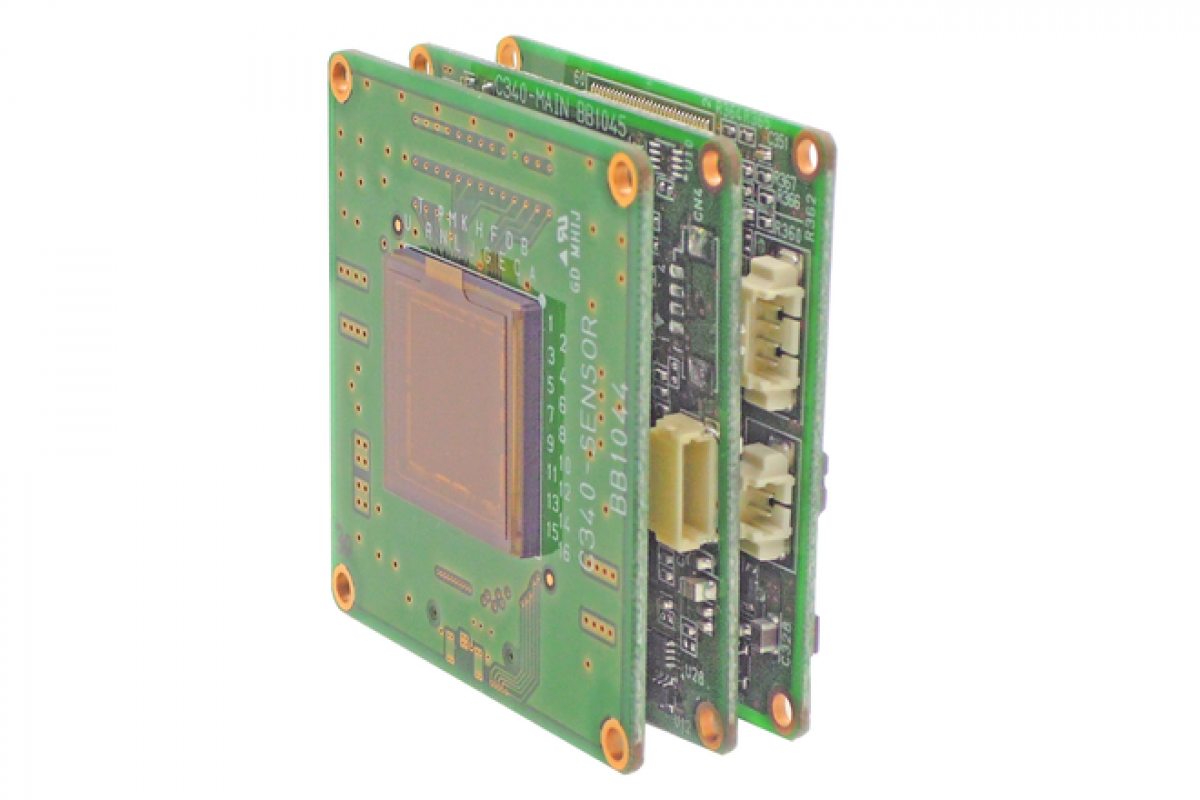

BV-C340 (Module)	400nm～700nm	CMOS　HDTV Color	42mm × 42mm (W×H)	1920 (H) × 1080 (V)	-	Serial interface (UART +3.3V)	-	1/1.8" Bayer CMOS, 3.45μm square	-
BV-C340H	400nm～700nm	CMOS HDTV Color	55mm × 55mm × 61mm	1920 (H) × 1080 (V)	-	RS-485	CS mount	1/1.8" Bayer CMOS, 3.45μm square	235g
BV-C340M (Module)	400nm～700nm	CMOS HDTV B/W	42mm × 42mm (W×H)	1920 (H) × 1080 (V)	-	Serial interface (UART +3.3V)	-	1/1.8" B/W CMOS, 3.45μm square	-
BV-C340MH	400nm～700nm	CMOS HDTV B/W	55mm × 55mm × 61mm	1920 (H) × 1080 (V)	-	RS-485	CS Mount	1/1.8" B/W CMOS, 3.45μm square	235g
