VS-HVA Series

1.1" 2.74μm support
Compact Design & High Resolution Fixed Focal Length Lens

VS TECHNOLOGY

Design: More compact and lightweight than conventional models

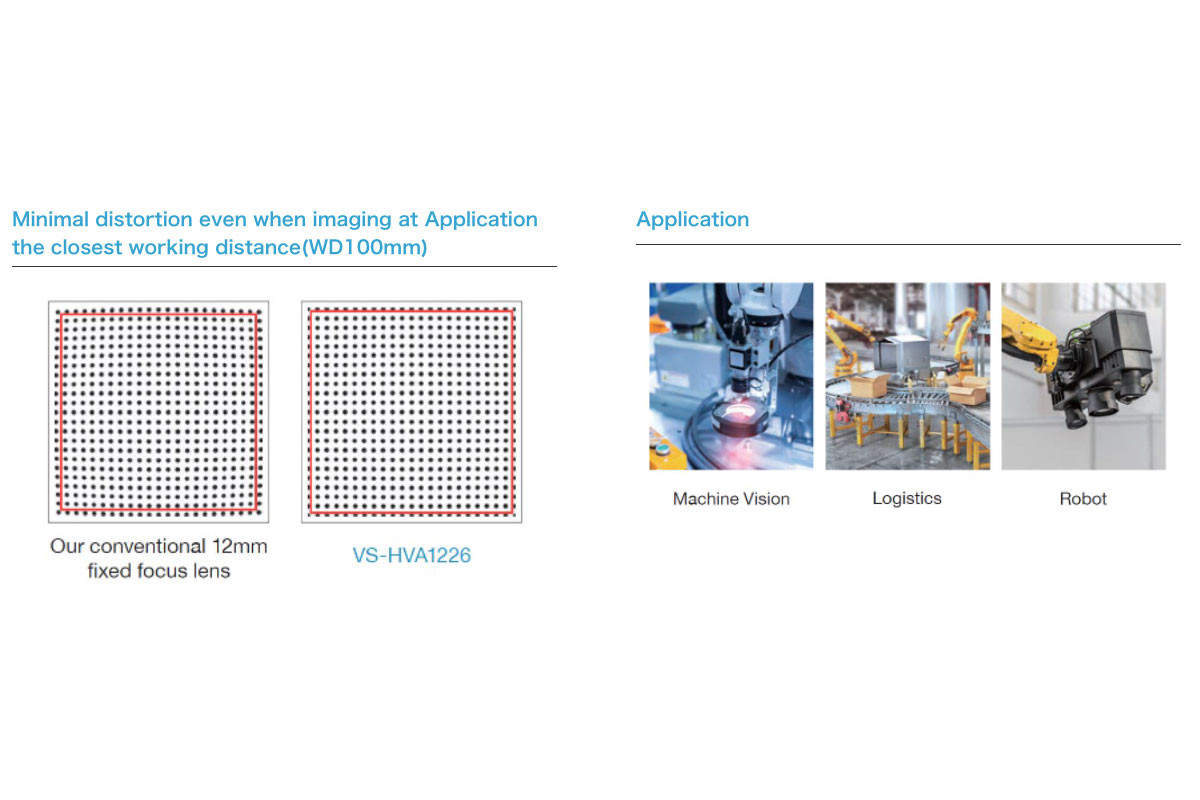

Image: Accurate image can be obtained due to the design with less distortion to the periphery
Models available: f12mm / f16mm / f25mm / f35mm / f50mm, 5 models
Mount: C-Mount
Support: 1.1" 2.74μm support

Show Models

▼

Variant code	Dimensions	FNO	Focal Length mm	M.O.D(mm)	Mount	Sensor Size (max.)	Weight	Pdf	Spec
VS-HVA1226	φ37.5 x 51.2	F2.6～Close	12	100	C-Mount	1.1"	126g
VS-HVA1626	φ37.5 x 50	F2.6～Close	16	100	C-Mount	1.1"	128g
VS-HVA2524	φ37.5 x 45	F2.4～Close	25	100	C-Mount	1.1"	116g
VS-HVA3522	φ39.5 x 48.5	F2.2～Close	35	200	C-Mount	1.1"	122g
VS-HVA5024	φ40 x 57.5	F2.4～Close	50	200	C-Mount	1.1"	142g

Models 1 - 5 By 5 Models
