VS-TCM Series (Large Format)

Large Format Telecentric Lenses

VS TECHNOLOGY
  • Design: Telecentric
  • Image: φ16 - φ35 Image circle
  • Magnification: 0.3x - 7.0x
  • Mount: C-Mount
  • Support: 1.1" Sensor

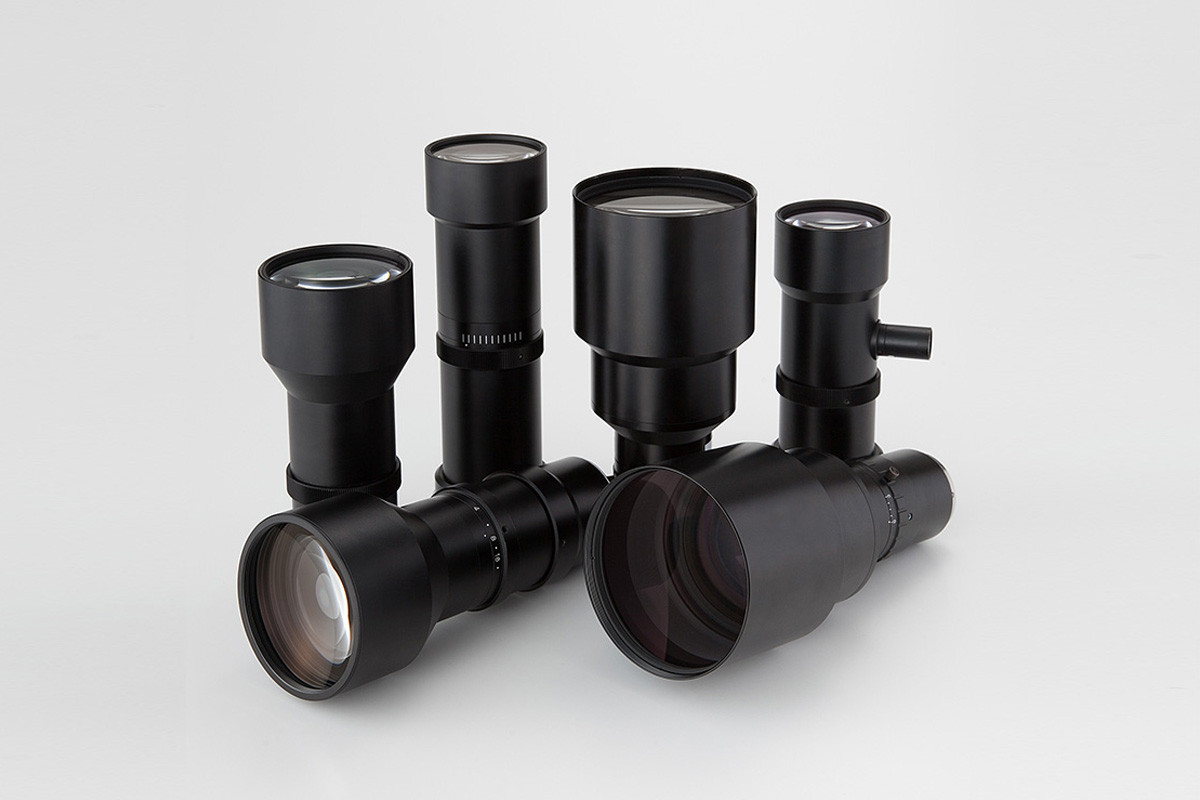

VS-TCM Series (Large Format)

The VS-TCM series is made to suit the larger 1.1" sensor format of high resolution cameras. With its high NA these lenses are well suited for AOI, high accuracy inspection, and measurement applications. The adjustable aperture allows the DOF and contrast to be set to your application's needs.

Variant code Co-axial Lighting Image Circle Mount NA Opt. Mag Sensor Size (max.) WD (mm) Working F/# Pdf Spec
VS-TCM03-130/S - Φ20 C-Mount 0.026 0.3x - 130.2 5.77
VS-TCM04-100/S - Φ16 C-Mount 0.05 0.4x - 95.2 4.00
VS-TCM05-130/S - Φ18 C-Mount 0.055 0.5x - 132.9 4.57
VS-TCM07-150/S - Φ18 C-Mount 0.066 0.7x - 150.8 5.29
VS-TCM1-130/S - Φ18 C-Mount 0.08 1.0x - 131.5 6.25
VS-TCM3-50CO O Φ18.5 C-Mount 0.1 3.0x - 53.9 15
VS-TCM4-50CO O Φ22 C-Mount 0.1 4.0x - 52.4 20
VS-TCM5-50CO O Φ22 C-Mount 0.1 5.0x - 51.5 25
VS-TCM6-50CO O Φ22 C-Mount 0.1 6.0x - 50.9 30
VS-TCM7-50CO O Φ22 C-Mount 0.1 7.0x - 50.4 35
VS-LTC075-70-35/FS - Φ35 F-Mount 0.070 0.75x - 70.2 5.4
VS-LTC075-70CO-35/FS O Φ35 F-Mount 0.070 0.75x - 70.2 5.4
VS-LTC1-70-35/FS - Φ35 F-Mount 0.080 1.0x - 70.2 6.3
VS-LTC1-70CO-35/FS O Φ35 F-Mount 0.080 1.0x - 70.2 6.3
VS-LTC2-70/FSN - Φ35 F-Mount 0.080 2.0x - 70.2 12.5
VS-LTC2-70CO/FSN O Φ35 F-Mount 0.080 2.0x - 70.2 12.5
VS-LTC2-60/FS - Φ35 F-Mount 0.110 2.0x - 60.0 9.1
VS-LTC3.3-45/FS - Φ35 F-Mount 0.086 3.3x - 45.0 19.2
VS-LTC4-50CO-28/F O Φ25 F-Mount 0.100 4.0x - 52.4 20.0
VS-LTC5-50CO-28/F O Φ28.6 F-Mount 0.100 5.0x - 51.5 25.0
VS-LTC6-50CO-28/F - Φ28.6 F-Mount 0.100 6.0x O 50.9 30.0
VS-LTC7-50CO-28/F O Φ28.6 F-Mount 0.100 7.0x - 50.5 35.0
