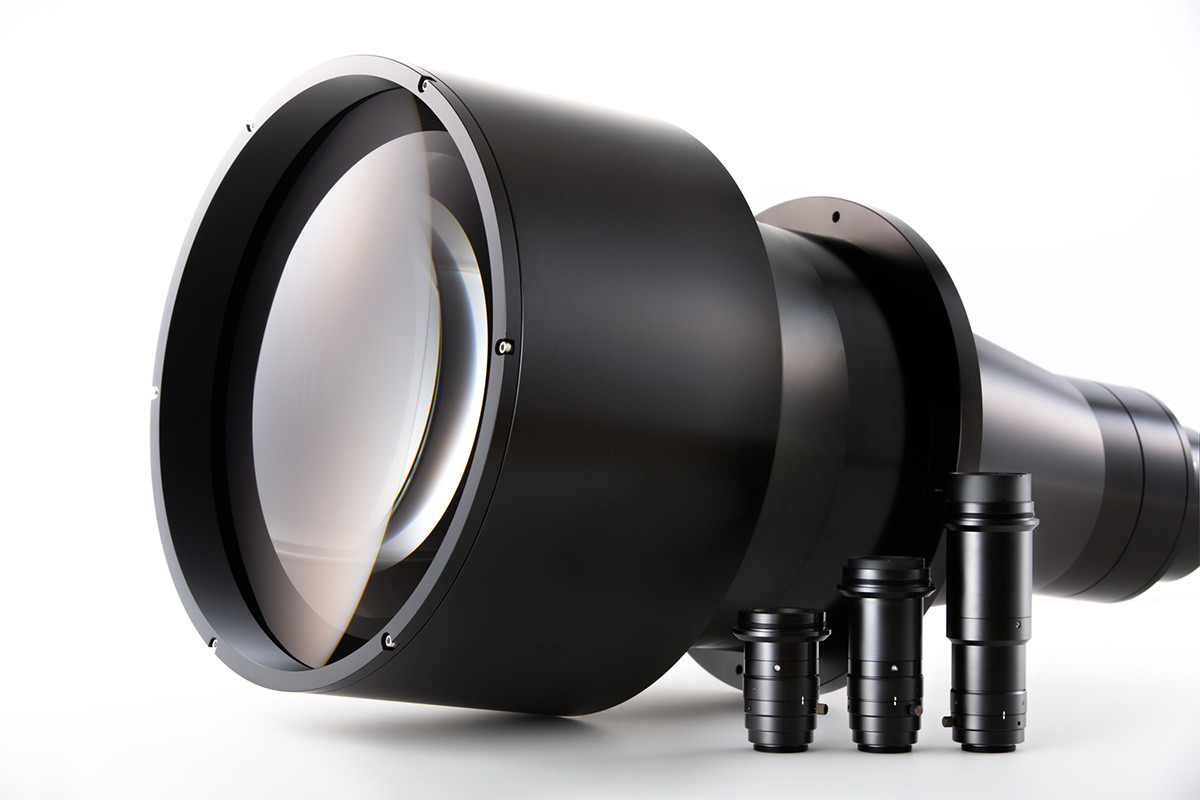

VS-TLS Series

Supports 12MP 1.1"
Front Unit - Rear Unit Reconfigurable Telecentric Lens

VS TECHNOLOGY
  • Design: Distortion-less
  • Magnification: Can be changed by changing the rear unit
  • Models available: 6 Models 0.029ｘ~ 0.1x
  • Mount: C-Mount
  • WD: Fine tuning of WD is possible by the focus adjustment
  • Resolution: 3.45μm
Leaflet
VS-TLS Series

3 Magnifications available by changing the combination of front and rear units

Changing the magnification is cost effective and easy to fine tune with the focus funcion

Variant code Dimensions Front Unit Model No. O/I (mm) Opt. Mag Rear Unit Model No. Sensor Size (max.) TV Distortion WD (mm) Pdf Spec
VS-TLS200-01B φ205(max.)xL=506.5 mm VS-TLS200 825 0.1 VS-TLS200-01B 1.1" 0.06% 301
VS-TLS200-006B φ205(max.)xL=506.5 mm VS-TLS200 825 0.062 VS-TLS200-006B 2/3" 0.05% 301
VS-TLS200-005B φ205(max.)xL=506.5 mm VS-TLS200 825 0.05 VS-TLS200-005B 1/1.8" 0.04% 301
VS-TLS300-007B φ300(max.)xL=732.5 mm VS-TLS300 1250 0.067 VS-TLS300-007B 1.1" -0.03% 500
VS-TLS300-004B φ300(max.)xL=702.5 mm VS-TLS300 1220 0.042 VS-TLS300-004B 2/3" 0.01% 500
VS-TLS300-003B φ300(max.)xL=682.5 mm VS-TLS300 1200 0.029 VS-TLS300-003B 1/2" 0.01% 500
