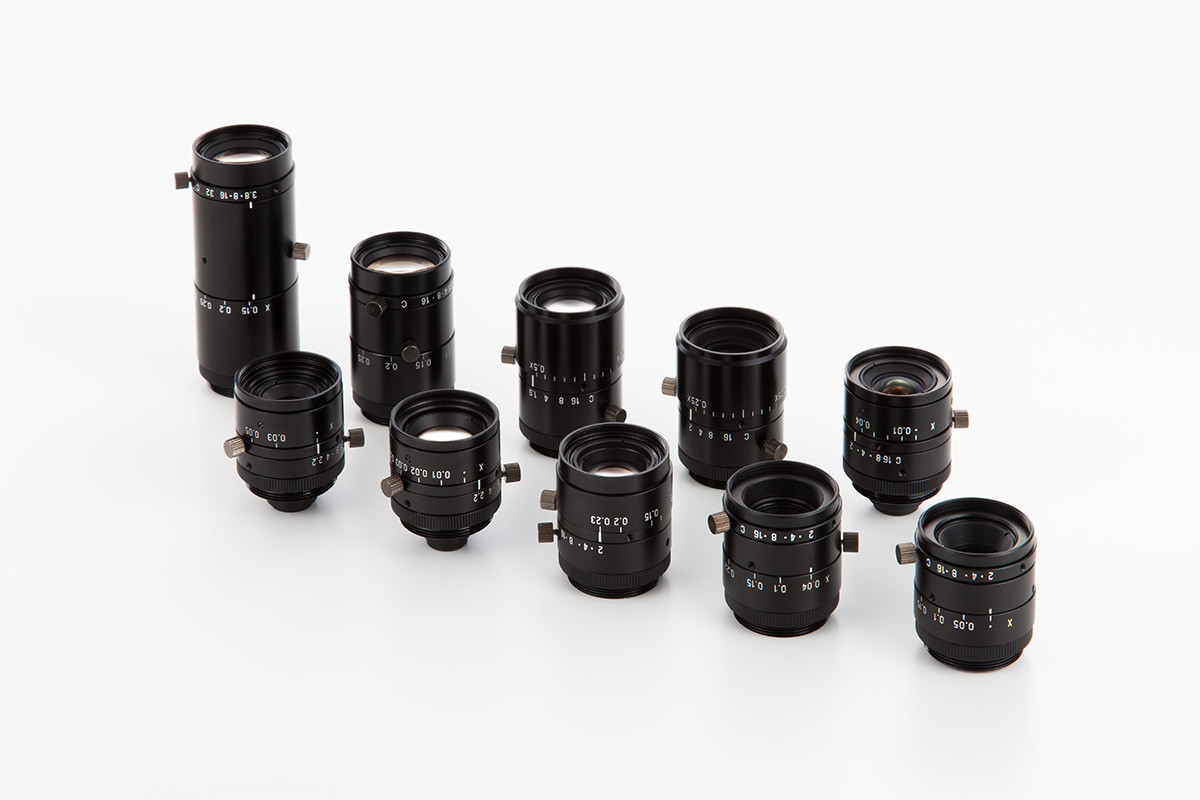

VS-LDA series

2/3" Support, Distortionless Macro Lenses

VS TECHNOLOGY

Design: Versatile design for wide range of magnification, WD, and DOF
Distortion: Distortionless design
Models Available: f4mm - f75mm, 10 models
Mount: C-Mount
Optimized: for Macro Applications( short working distance)
Support: 1/2" - 2/3" sensor

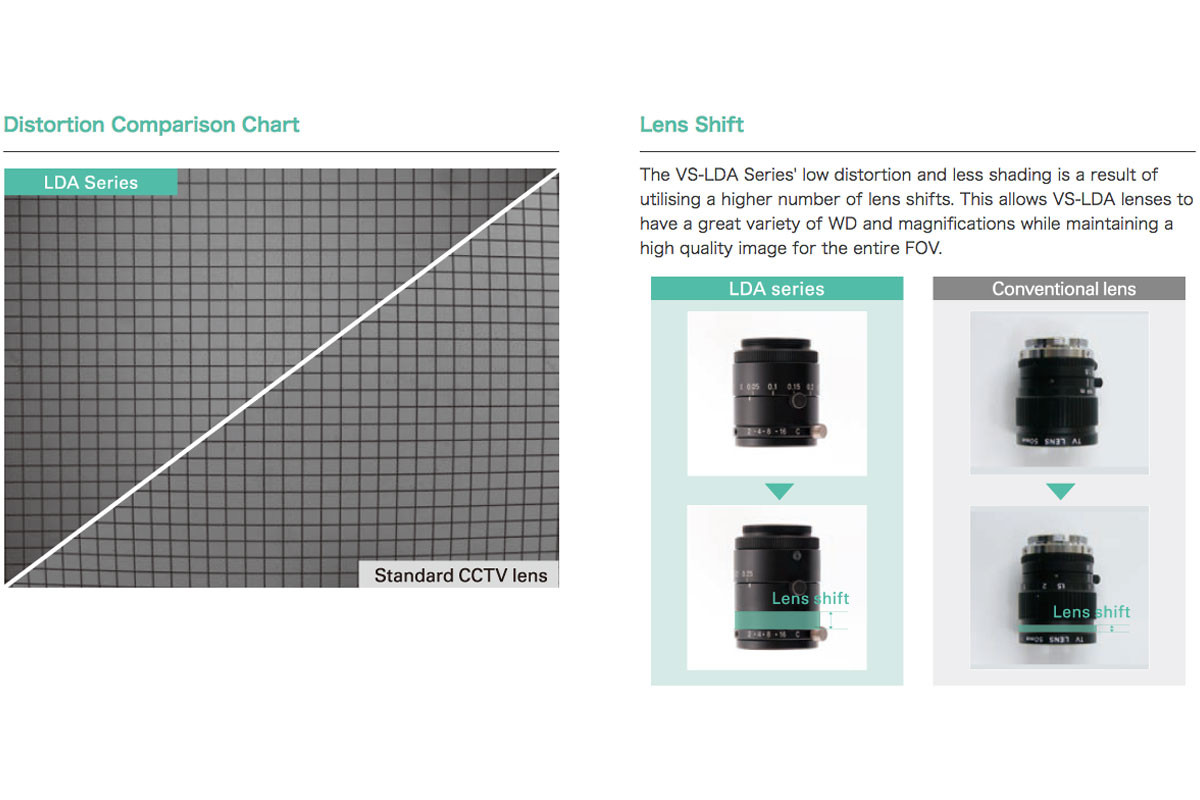

Lens Shift

The VS-LDA Series' low distortion and less shading is a result of utilising a higher number of lens shifts. This allows VS-LDA lenses to have a great variety of WD and magnifications while maintaining a high quality image for the entire FOV.

Mostra Modelli

▼

Codice variante	Focal Length mm	Opti. Mag. Range	Sensor Size (max.)	TV Distortion	WD (mm)	Working F/#
VS-LDA10	10	(∞) 0.03x - 0.10x	1/2"	0.03% ～ -0.04%	330.2 - 91.0	2.3 - 2.4
VS-LDA15	15	(∞) 0.03x - 0.15x	2/3"	-0.01% ～ -0.09%	489.2 - 88.9	2.1 - 2.2
VS-LDA20	20	0.04x - 0.22x	2/3"	-0.01% ～ -0.17%	510.3 - 86.6	2.1 - 2.3
VS-LDA25	25	0.05x - 0.25x	2/3"	0.06% ～ -0.06%2/3"	508.2 - 100.2	2.1 - 2.6
VS-LDA30	30	0.08x - 0.23x	2/3"	0.08% ～ -0.06%	381.6 - 141.5	2.4 - 2.8
VS-LDA35	35	0.3x - 0.5x	2/3"	0.02% ～ 0.00%	142.9 - 96.1	2.5 - 2.9
VS-LDA4	4	(∞) 0.01x - 0.04x	1/2"	-0.23% ～ -0.24%	403.2 - 92.7	2.1
VS-LDA50	50	0.1x - 0.25x	2/3"	0.03 ～ 0.00%	512.4 - 221.5	2.7 - 3.1
VS-LDA6.5	6.5	(∞) 0.01x - 0.06x	1/2"	0.16% ～ -0.18%	653.2 - 95.2	2.3
VS-LDA75	75	0.15x - 0.35x	2/3"	0.03% ～ -0.01%	527.5 - 245.6	4.1 - 4.5

Modelli 1 - 10 di 10 Modelli
