VS-THV Series

Variable aperture allows DOF and contrast adjustment

VS TECHNOLOGY
  • Available: Stand Clamp (VS-THV011-220/S)
  • Magnification: 0.11x - 2.0x
  • Max FOV: 100mm x 100mm (VS-THV011-220/S)
  • Models Available: 7 models
  • Mount: C-Mount
  • Support: 1" sensor

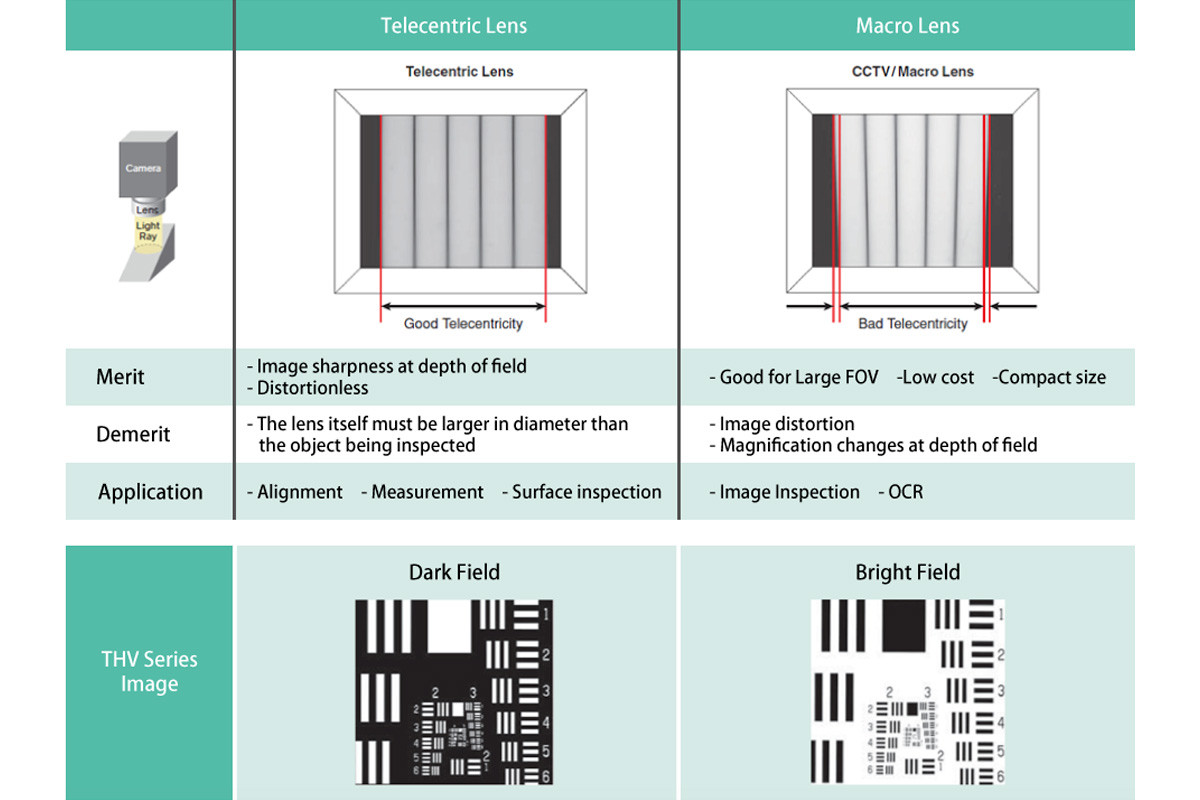

  • Telecentricity: High
Leaflet
VS-THV Series

The VS-THV series is designed to support cameras with large sensors up to 1", The adjustable aperture allows the DOF and contrast to be set to the need of your application.

Codice variante Co-axial Lighting NA Opt. Mag Sensor Size (max.) WD (mm) Working F/# Pdf Spec
VS-THV05-110/S - 0.025 0.5x 1" 112.2 10.0
VS-THV05-110CO/S O 0.025 0.5x 1" 112.2 10.0
VS-THV1-110/S - 0.048 1.0x 1" 111.1 10.5
VS-THV1-110CO/S O 0.048 1.0x 1" 111.1 10.5
VS-THV1.5-110/S - 0.075 1.5x 1.1" 110.4 10.0
VS-THV1.5-110CO/S O 0.075 1.5x 1.1" 110.4 10.0
VS-THV2-110/S - 0.100 2.0x 1" 110.4 10.0
VS-THV2-110CO/S O 0.100 2.0x 1" 110.4 10.0
VS-THV3-110/S - 0.120 3.0x 1.1" 111.2 12.5
VS-THV3-110CO/S O 0.120 3.0x 1.1" 111.2 12.5
VS-THV4-110/S - 0.130 4.0x 1.1" 110.4 110.4
VS-THV4-110CO/S O 0.130 4.0x 1.1" 110.4 15.4
VS-THV011-220/S - 0.010 0.11x 1" 222.5 5.6
